PERFORMANCE

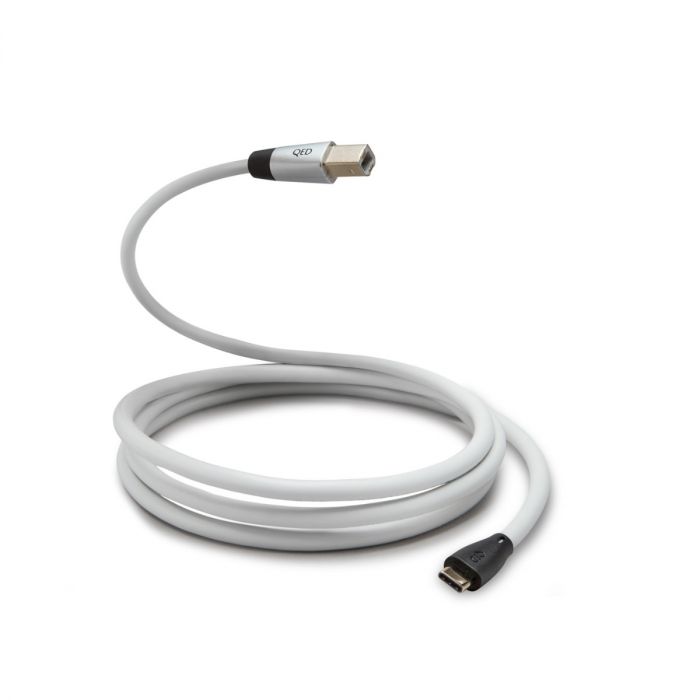

USB C(M)-B(M)
USB. Minus the Headache.
USB has become one of the most popular ways to connect computers, streamers and music servers to DACs.
Simple in theory.
Until you start looking at cable specifications, data rates, shielding, certification logos and forum debates that somehow turn a straightforward connection into a weekend project.
Performance USB is designed to remove the guesswork.
Built specifically for digital audio, it combines USB-IF High Speed® certification, individually screened oxygen-free copper conductors and a low-loss cable design that's optimised for high-resolution audio playback.
Whether you're connecting a laptop, music server, streamer or DAC, Performance USB gives you the confidence that you've got this connection right.
Because your USB cable shouldn't become the most complicated component in your system.
Built for Digital Audio
Not all USB applications place the same demands on a cable.
Moving a spreadsheet to a printer is one thing. Delivering high-resolution digital audio to a DAC is another entirely.
Performance USB has been engineered specifically for audio applications, supporting high-resolution formats including 24-bit/192kHz audio and DSD512.
Certified to Perform
Performance USB is USB-IF High Speed® certified.
That certification isn't there for decoration.
It provides independent verification that the cable meets the standards required for reliable USB operation, giving you confidence that it will perform as intended with modern DACs, streamers and digital audio devices.
Protecting the Signal
Digital audio is particularly sensitive to timing accuracy.
Performance USB uses an individually screened 99.999% oxygen-free copper data lane alongside low-loss dielectric materials designed to help minimise interference and reduce the potential for cable-induced jitter.
You don't need to understand the engineering in detail.
What's important is that the cable is designed specifically to protect the audio signal, not simply move data from one place to another.
Keeping Power and Data Apart
Performance USB uses a triple-screened construction that keeps power conductors isolated from the data lane.
It sounds like a small detail, but good cable design is often a collection of small details working together to prevent problems before they happen.
The result is a cable engineered specifically for the demands of modern digital audio systems.
Key Features
- USB-IF High Speed® certified
- Supports high-resolution audio up to 24-bit/192kHz and DSD512
- Individually screened 99.999% oxygen-free copper data conductors
- Low-loss dielectric design
- Triple-screened construction
- Isolated power and data pathways
- Flexible TPE outer jacket
- Nickel-plated USB connectors
Product Features
- USB-IF High Speed® Certified
- Supports high-resolution audio up to 24-bit/192kHz and DSD512
- Individually screened 99.999% oxygen-free copper data conductors
- Low-loss dielectric design
- Triple-screened construction
- Isolated power and data pathways
- Nickel-plated USB connectors
- Ultra-flexible TPE outer jacket
Technical Specifications
- Conductor Material: Stranded 99.999% Oxygen-Free Copper
- Conductor Sizes: 1P 7/0.127 + 1C 7/0.254 + 1C 7/0.254 + 1C 7/0.127 + Drain
- Screening Material: Aluminium Mylar, tinned OFC drain and shield braid
- Dielectric: Foamed Polyethylene
- Loop Resistance: 0.093 Ω/m
- Capacitance Imbalance: <330 pF/100 m
- Delay Skew: 45 ns/100 m
- Characteristic Impedance: 90 Ω
- Jacket Outside Diameter: 6.8 mm
- Jacket Finish: Stone Grey TPE
Performance USB is ideal for connecting:
- DACs to laptops and desktop computers
- Music servers to DACs
- Streamers with USB audio outputs
- High-resolution digital audio systems
- Desktop audio setups
- Dedicated headphone DACs and amplifiers
Performance sits at the heart of the QED range. Above Connect and below Reference and Signature, it's the cable we'd recommend to most music lovers building a good digital audio system and wanting the confidence that every connection is properly taken care of.
