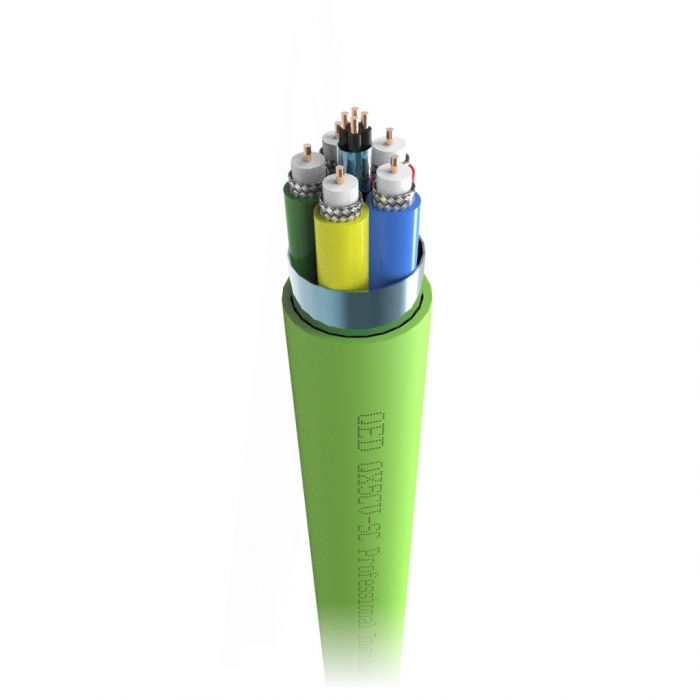

QX5CV-SC Five Core Projector Cable
QX5CV-SC Five Core Projector Cable
QX5CV is designed for the professional installer
QX5CV is designed for the professional installer - a compact one cable solution for all high-end projector and flat screen installs. This one cable literally does do it all - component (YUV), s-video (YC) and RS232 or IR, all in one easy run. The QX5CV exhibits excellent noise rejection even over long runs.
FEATURES AND BENEFITS
LSZH (Low Smoke Zero Halogen) High Performance outer jacket
True 75 Ohm high purity solid core centre conductor ensures signal
integrity - even on longer runs
Features outer Aluminium Mylar screen and individual screens of woven tinned copper braids for excellent noise rejection
LOW SMOKE ZERO HALOGEN (LSZH)
Most cables feature PVC insulation, some have a basic fire rating such as CL3, etc. Unfortunately, most cables give off hazardous toxic smoke during a fire, posing a very serious health risk.
LSZH cables are made from a special compound that performs as well as PVC insulation, but crucially gives off very little smoke and no halogen toxins in the event of a fire.
Many leading architects and builders along with commercial and marine designers are now specifying LSZH spec cables as standard.
Only LSZH cables meet the legislated fire specifications for boat installations.
The QED Pro LSZH Declaration of Conformity can be downloaded here:
We don't just use a fire rated jacket material over an ordinary cable assembly; each complete cable design including jacket and all internal conductors has to undergo rigorous fire safety testing to the following standards:
IEC 61034-1:2005
IEC 61034-2:2005
Measurement of smoke density of cables burning
under defined conditions.
IEC 60332-1:2004
Test for vertical flame propagation for a single insulated wire or cable.
IEC 60754-2:1991
(Amendment1, 1997) test on gas evolved during combustion of electric cables.

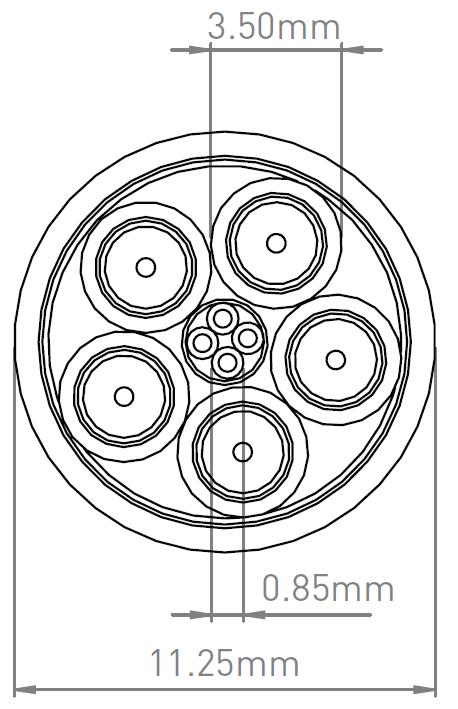

DIMENSIONS
.JPG)
OVERALL PERFORMANCE
WHAT THIS CABLE IS USED FOR
CONNECT YOUR:
Component video sourceTO YOUR:
