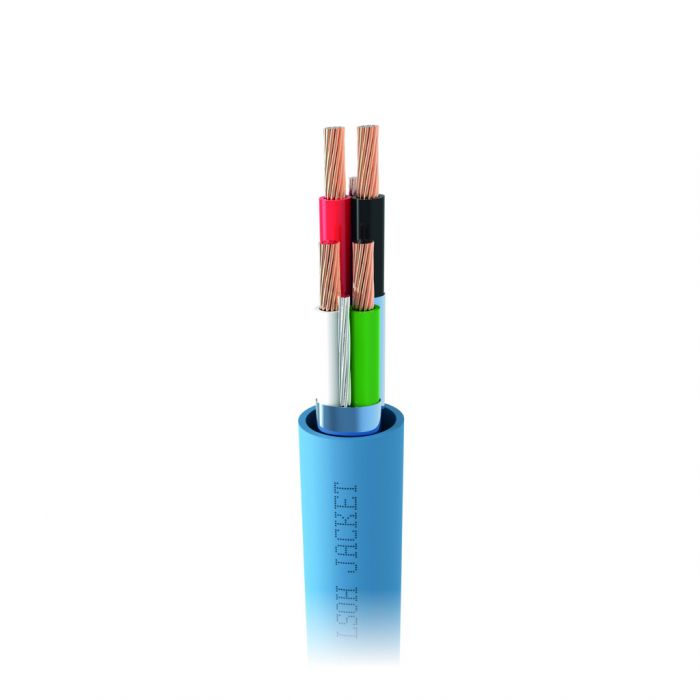

QXHA1 Home Automation Cable
QXHA1 Home Automation Cable
Combined power and data
The QXHA1 is a high performance combined data and power cable suitable for a range of home automation and lighting control systems including: Lutron Grafik Eye, Helvar, Crestron Cresnet, and AMX.
FEATURES AND BENEFITS
LSZH (Low Smoke Zero Halogen) High Performance outer jacket
Exceeds IEC60134-1, IEC60134-2, IEC60332-1, IEC60754-1 & IEC60754-2
Industry standard conductor colour coding
Sequentially metre marked
Available in colour coded blue
LOW SMOKE ZERO HALOGEN (LSZH)
Most cables feature PVC insulation, some have a basic fire rating such as CL3, etc. Unfortunately, most cables give off hazardous toxic smoke during a fire, posing a very serious health risk.
LSZH cables are made from a special compound that performs as well as PVC insulation, but crucially gives off very little smoke and no halogen toxins in the event of a fire.
Many leading architects and builders along with commercial and marine designers are now specifying LSZH spec cables as standard.
Only LSZH cables meet the legislated fire specifications for boat installations.
The QED Pro LSZH Declaration of Conformity can be downloaded here:
We don't just use a fire rated jacket material over an ordinary cable assembly; each complete cable design including jacket and all internal conductors has to undergo rigorous fire safety testing to the following standards:
IEC 61034-1:2005
IEC 61034-2:2005
Measurement of smoke density of cables burning
under defined conditions.
IEC 60332-1:2004
Test for vertical flame propagation for a single insulated wire or cable.
IEC 60754-2:1991
(Amendment1, 1997) test on gas evolved during combustion of electric cables.

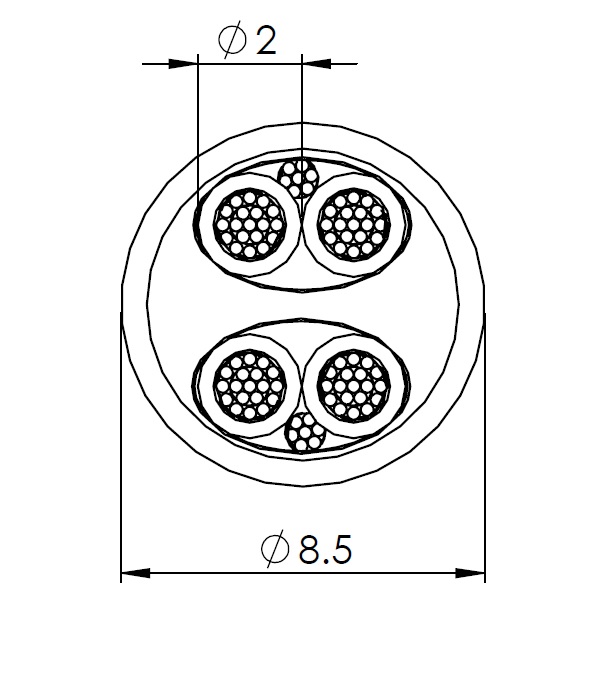

DIMENSIONS
OVERALL PERFORMANCE
