ANALOGUE
With a vast array of technologies and our 40+ years in the specialist cable market, we produce cables to suit every budget to maximise the potential of your beloved system. With a vast array of technologies and our 40+ years in the specialist cable market, we produce cables to suit every budget to maximise the potential of your beloved system.
DIGITAL
Whether you’re connecting your TV to a sound bar or music server to a DAC, QED has a digital cable to meet your requirements. Our cables are tried and tested to ensure you get the best performance from your digital sources.
PHONO TO PHONO
When connecting your analogue sources such as your CD player or turntable to your amplifier, here at QED, we have a cable to suit your system. From our entry level Profile cable through to our flagship Signature Interconnect.
XLR
Using our unique Tri-Conductor technology and Neutrik XX-14 balanced plugs, our XLR cables offer the cleanest possible sound from a specialist XLR cable, whilst also incorporating our Ferrite insulation to eliminate timing errors.
DIGITAL COAXIAL
An alternative to optical, our premium digital coaxial cables use a specially designed cable cordage and unique plug design to achieve the precise signal characteristics required for high resolution and multi-channel audio.
USB A-B
With our high end USB A-B we isolate the power and data conductors preventing any potential cross talk, therefore meaning less jitter and an enhanced audio performance.
USB A-B MICRO
For use with Laptops/Computers and portable headphone amps/dacs, the QED reference USB A-Micro B uses our Ferrite insulation to reduce Jitter, as well as isolating the data and power lanes for a cleaner overall signal.
USB A-MINI B
Triple magnet screening and 24K gold plugs makes our Performance USB A-Mini B the best in its class.
JACK TO PHONO
Connecting your mobile device/tablet to your audio system has never been easier with our 2 step 3.5mm jack for a simpler connection.
HDMI
Using our in house HDMI testing facility, QED have designed premium HDMI cables to suit any budget. From our flexible and slimline profile to our exceptional Reference HDMI with its BandPass filter technology to reduce Jitter to Ultra low levels
OPTICAL
For all of your Optical needs, QED has an optical cable for you. For the more advanced, high bandwidth signals, Reference Optical Quartz uses glass technology to accurately send the information from source to receiver.
ETHERNET
The most common type of cable used for connecting products on a wired network. This cable connects wired devices together to the local network for file sharing and Internet access.
SUBWOOFER CABLE
Using technologies from our analogue cables such as complimentary conductor technology, your subwoofer will always perform to its best capability.
Are QED HDMI cables 2.0 compatible?
All current QED HDMI cables are already compatible with the HDMI 2.0 standard and carry the "High Speed with Ethernet" logo and 3D/4K logos to prove it.
Since the introduction of the HDMI 1.4 spec in 2009 the HDMI.org banned the use of version numbers on HDMI cables. Therefore any cable which claims to be HDMI 1.4 or 2.0 is breaking the HDMI.org packaging code and is not entitled to use the HDMI logo. Instead the HDMI.org introduced four distinct cable specifications for which only the following official logos could be used:
Standard Speed cables were only required to pass a 720p60 or 1080i60 (2.25 Gb/s data rate) signal to receive the HDMI logo, whereas High Speed cables needed to be able to transmit a data rate of 10.2Gb/s which exceeds the current highest quality video format of 4K@24Hz (8.03Gb/s). The Ethernet version of the cables were capable of transmitting LAN signals down the HDMI link and were also fully compatible with the new Audio Return Channel feature. To avoid confusion QED decided to make all their cables "High Speed with Ethernet" so that our customers were able to enjoy any video standard or HDMI feature of which their partnering electronics was capable.

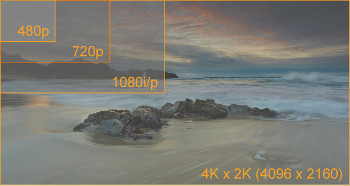

With the introduction of the HDMI 2.0 standard in September 2013 the maximum data rate of the HDMI link has been increased from 10.2Gb/s to 18Gb/s. This is to accommodate the new 4K@60Hz video standard which requires a data rate of 16.06 Gb/s. In order to achieve this, the electronics at each end must be 2.0 compliant but the cabling physical layer remains unchanged. To quote the HDMI.org website:
"HDMI 2.0 does not define new cables or new connectors. Current High Speed cables (Category 2 cables) are capable of carrying the increased bandwidth."
The same four cable designations remain from the 1.4 standard and the ban on use of version numbers remains in place. In order for a cable which was previously only capable of carrying 10.2 Gb/s to carry the new 18 Gb/s data rate the electronics each end have been modified so that the data clock is reduced in speed from 1/10th of the data rate in version 1.4 to 1/40th of the data rate in 2.0. Additionally in case a very inferior cable is being used there is a new error detection algorithm included so that the TV can report the fact that it is receiving too many errors to the Blu-ray or other source and request that the data rate be reduced to a lower video quality.
Note that there is error detection but not error correction; this is important because it at once admits that cable induced errors are present and that the only way to deal with them is to reduce the quality of the sending video standard.
All the more reason then, to invest in a QED Reference HDMI cable which even when tested under the old 1.4 standard was capable of 21 Gb/s at 1m - more than twice the required speed for a "High Speed with Ethernet cable".
Using a QED cable means your equipment will never have to reduce video quality to maintain a stable data link!!
